2 korak - Unosenje elemenata Step 2 - Entering parts for cutting  Previous topicNext topicFirst topicLast topic


Prvo cemo uneti elemente koje hocemo da izrezemo iz predhodno unete table
Podatke unosimo tako sto otkucamo naziv ili broj i onda pritisnemo taster ENTER
U gornjem levom uglu ekrana programa ispod unosa tabli imamo cetiri polja za unos elemenata:


INICIJALI: Ovde se unose inicijali musterije cije elemente rezemo.Kasnije pri stampanju seme rezanja na svakom unetom elementu se stampaju i inicijali, to znaci da prakticno mozemo da rezemo iz istih tabli vise musterija posto imamo uvid na samoj semi rezanja ciji je odredjeni elemenat.
DUZINA: Duzina elementa u cantimetrima
VISINA Visina elementa u cantimetrima
KOM Broj elemenata (npr. imam cetiri fioke sa prednjim stranama dimenzija 30x30)



KD    Da li se duzina kantira (0-ne,1-jedna duzina,2-obe duzine)
KV  Da li se visina kantira (0-ne,1-jedna visina,2-obe visine)



Znaci u gornjem primeru smo uneli inicijale musterije DM , duzina elementa je 275cm, visina elementa 207cm i broj takvih elemenata je 4.
Posle unosenja podataka za elemente imacemo u tabeli sa desne strane spisak svih do sada unetih elemenata.



First we will enter the dimensions of the parts that are need to be cut.
After entry of data we proceed by clicking ENTER for every operation.
In the top left part of the "Layout Overview" under the window for the entry of boards we have 6 tables.





Two (2) Inicials: Here we enter the buyers 2 initials.  If you are cutting parts of the same material for more individual buyers, you can enter their initials here so after optimization in the Optimization window you will be able to see parts for each buyer.  This is an advantage when printing a later sorting cut parts for the buyers.
Length: Length of parts in centimeters
Width: Width of parts in centimeters
Pcs. Number of parts (in previous example 4pieces 30x30cm.



KD    This table is for entering data when the length edges of the parts need to be laminated
(0-no, 1-one side, 2-both sides)
KV  This table is for entering data when the width edges of the parts need to be laminated
(0-no, 1-one side, 2-both sides)

In the top example we have entered 4 parts 30 x 30cm into a board 275 x 207cm.

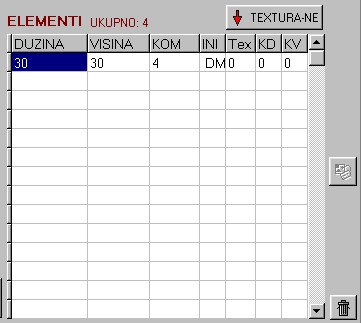

The entered data will be shown in the window at the right as in shown picture.
